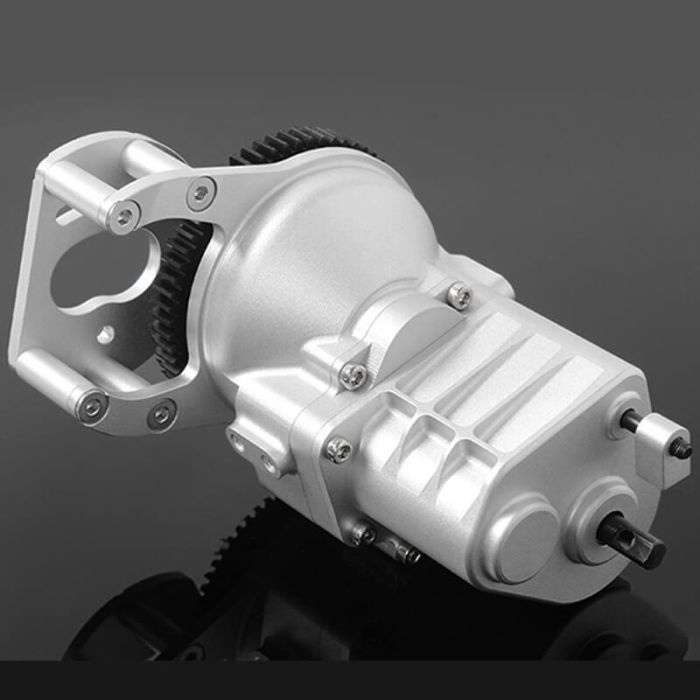

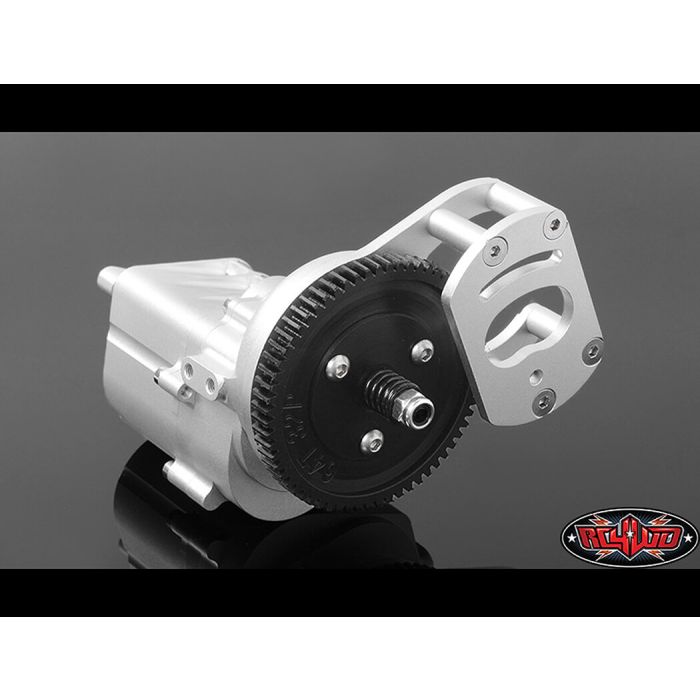

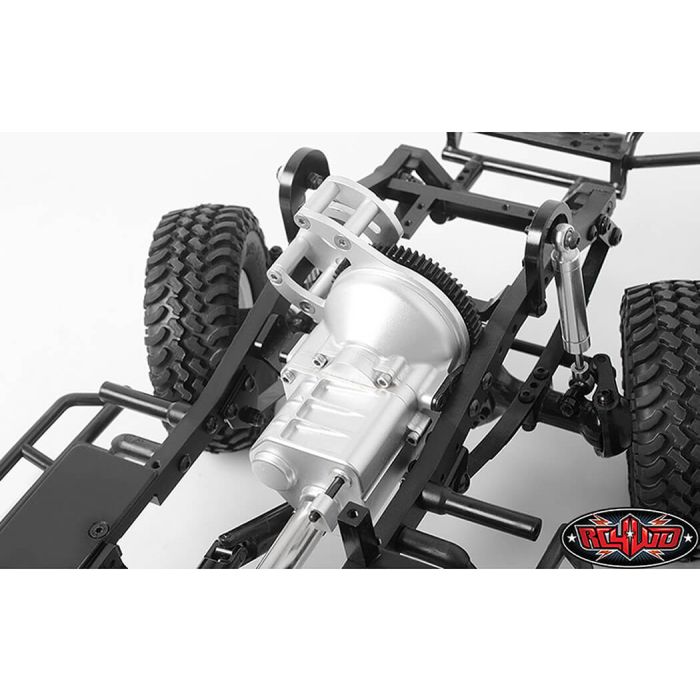

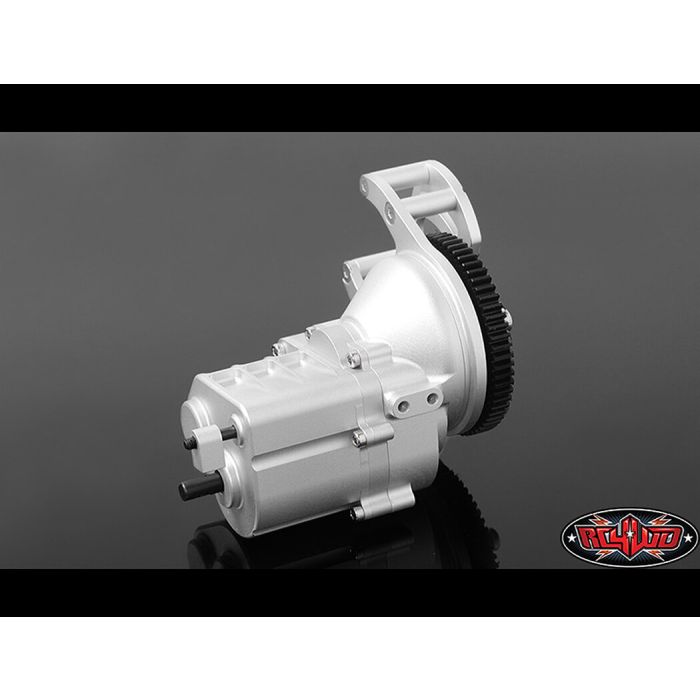

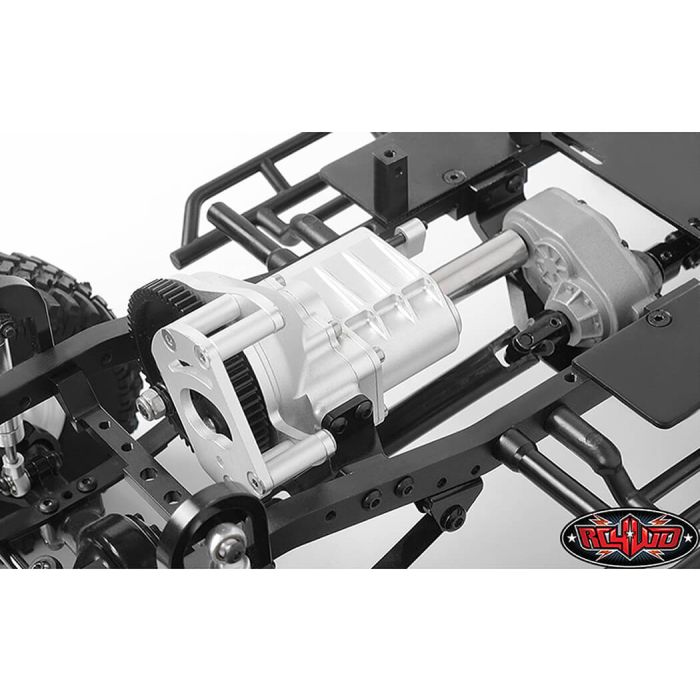

RC4WD R3 Scale 2 Speed Transmission

See All: Cars

See All: Cars

In Stock - Dispatches in 1-2 Days

£171.99

Description

Features

CNC Machined Billet Aluminum Case

Clockable Motor Mounting (10 different positions)

2 Speed

Gear Ratios Pinion / Spur 14/64 = 4.57:1

1st gear = 3.47:1

2nd gear = 1.27:1

Wide Steel 32 pitch gears

Delrin Spur Gear

Slipper Clutch Design

Changable Gearing Options

Compatible With Other Brand Pinions and Spur Gears

Specifications

Output Shaft OD: 0.19" / 5mm
Height: 2.44in / 62mm
Length: 4in / 101.6mm
Width: 2.91in / 74mm
Weight: 9.7oz / 275g

What's Included

1 x R3 Scale 2 Speed Transmission

1 x 14t 32p Hardened Steel Pinion Gear (Z-S0430)

1 x M3 x 3mm Set screw (Z-S0124)

Fits

RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)

Required Parts

R3 Tranny Mounts For Trail Finder 2 (Z-S0677)

More Information

Part Number	Z-U0025
