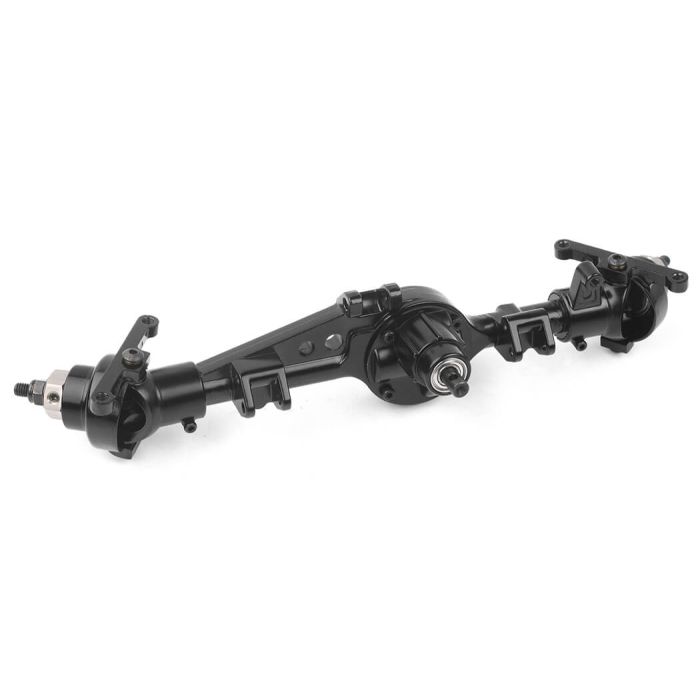

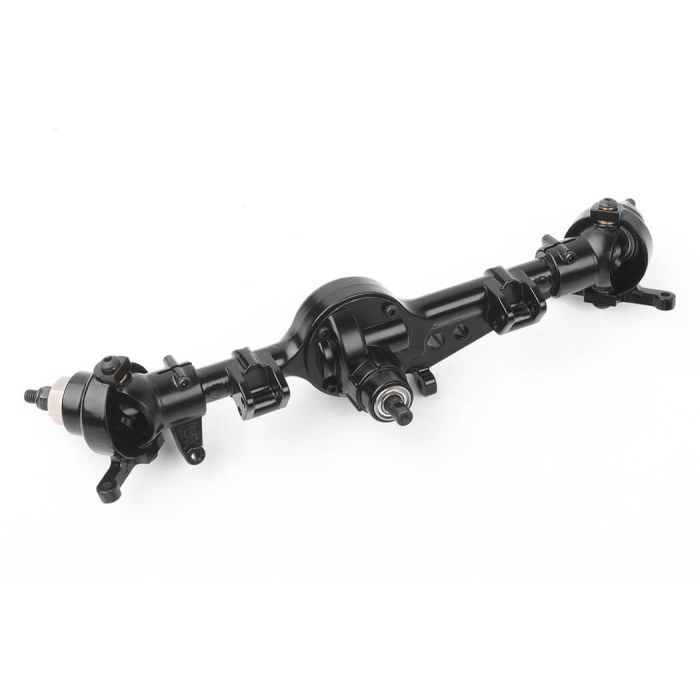

RC4WD Teq Ultimate Scale Cast Axle (Front)

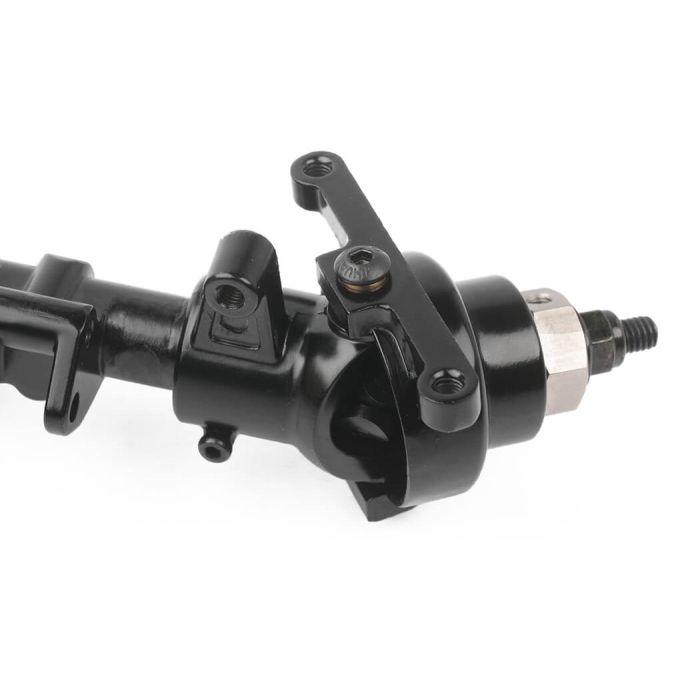

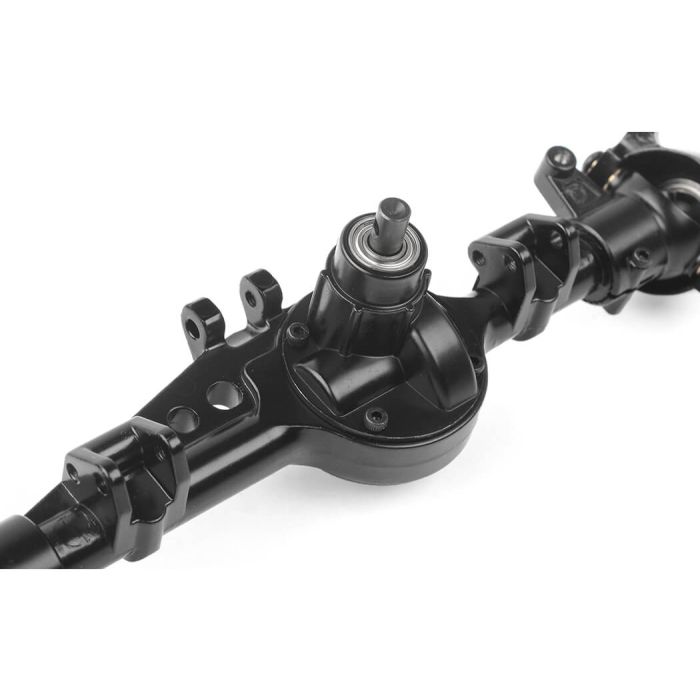

With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. The ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish.

Features

Die Cast Light Weight Metal Housing

Hardened Steel Spool Gears

5mm Axle Output Shaft

Full Ball Bearings

Powder-coated in Black

12mm Steel Wheel Hex

Includes XVD Universal Axle Shafts

Specifications

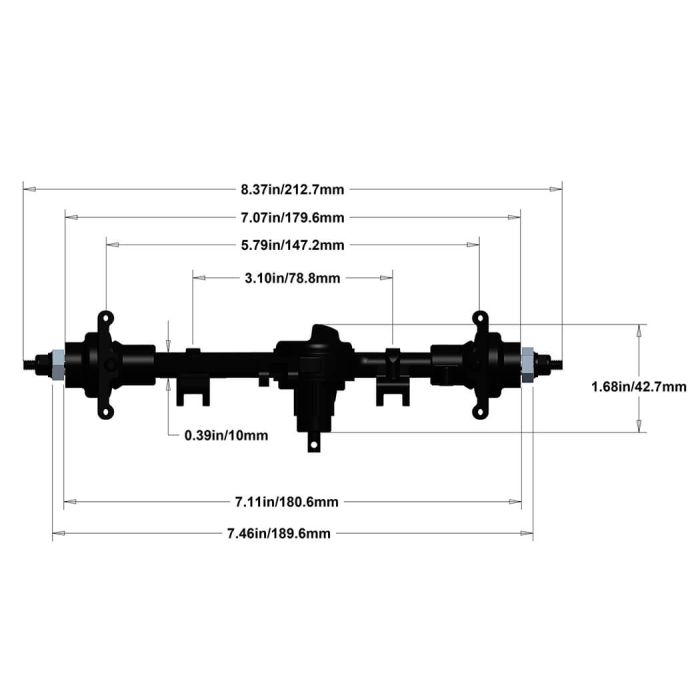

Width: 189.6mm / 7.46in
Gear Ratio: 8T/30T
Weight: 6.24oz / 177g

What's Included

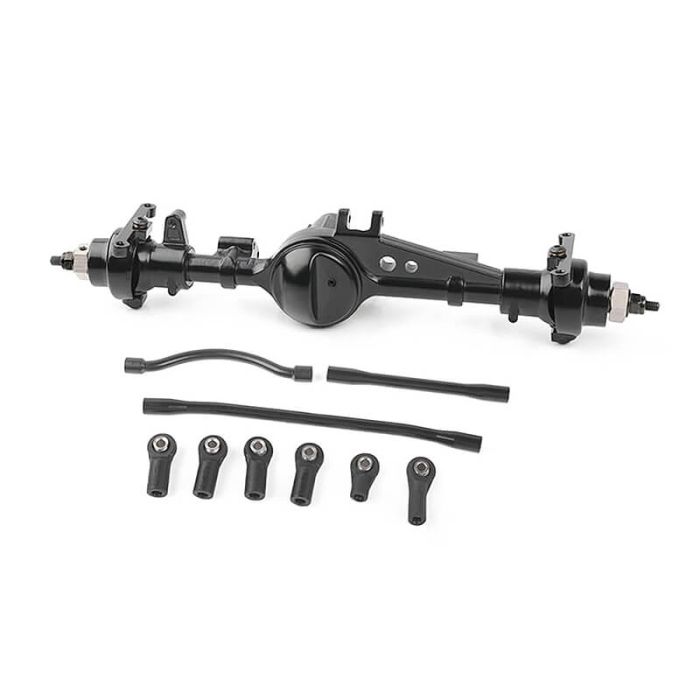

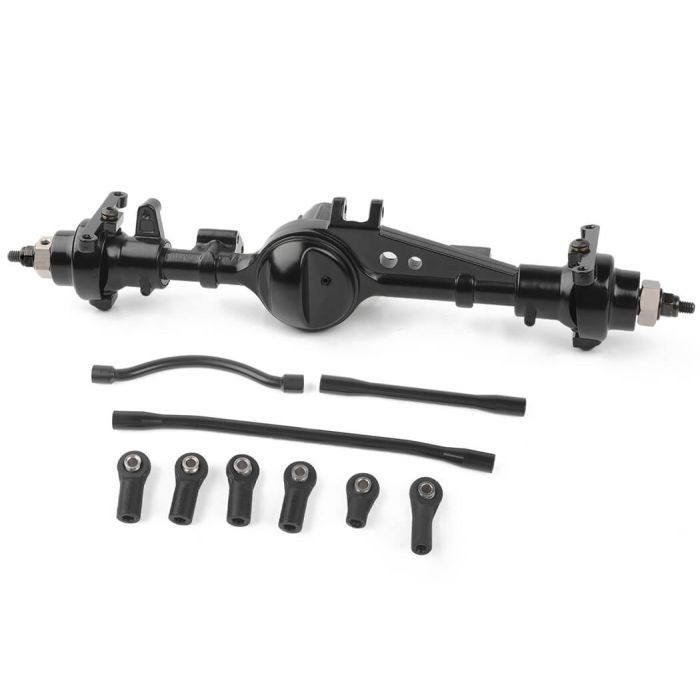

1 x TEQ Ultimate Scale Cast Axle (Front)

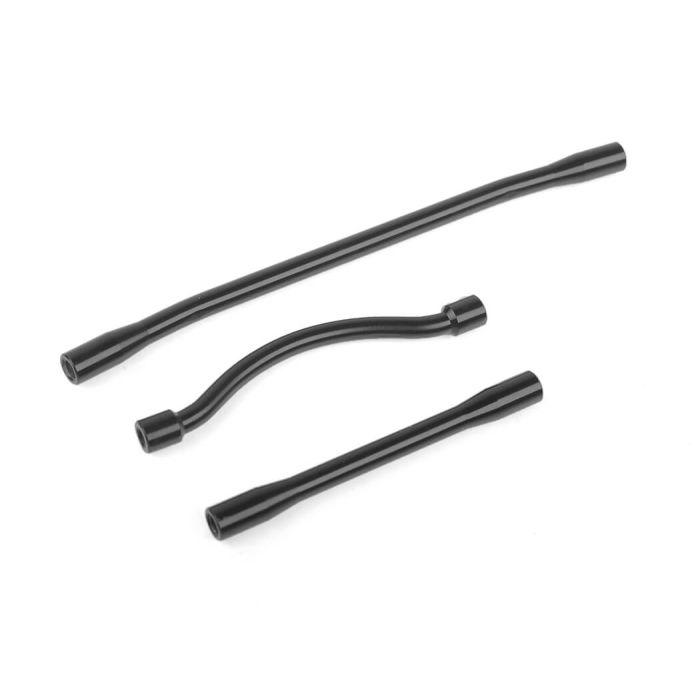

1 x 115.8mm Link

1 x 63mm Link

1 x 66mm Bent Link

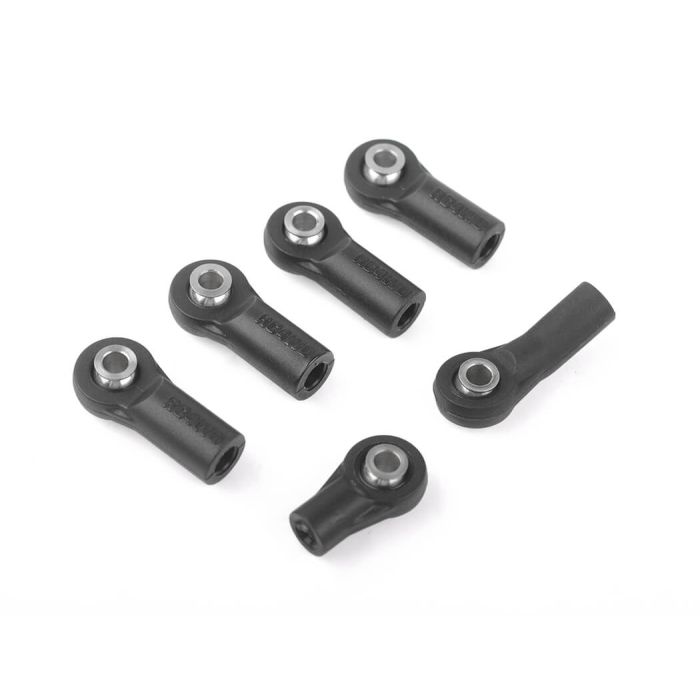

1 x M3 Plastic Bent Rod End

1 x M3 Mini Plastic Rod End

4 x RC4WD M3/M4 Plastic Short Rod Ends

2 x M3 x 10mm Set Screws

4 x M4 x 20mm Set Screws

Fits

Axial SCX10 II

Associated Element Enduro

Notes

To install on Element Enduro chassis you will need to use the stock panhard and drag link.

To retain a centered front axle the stock panhard link and drag link will need to the lengthened by loosening the rod ends 1-2 revolutions.

Please do routine maintenance.

Check the grease around the gears and also oil the bearings.

Do not over tighten screws as you can strip the holes. Use Locktite but do not use too much or you can damage the casing.
