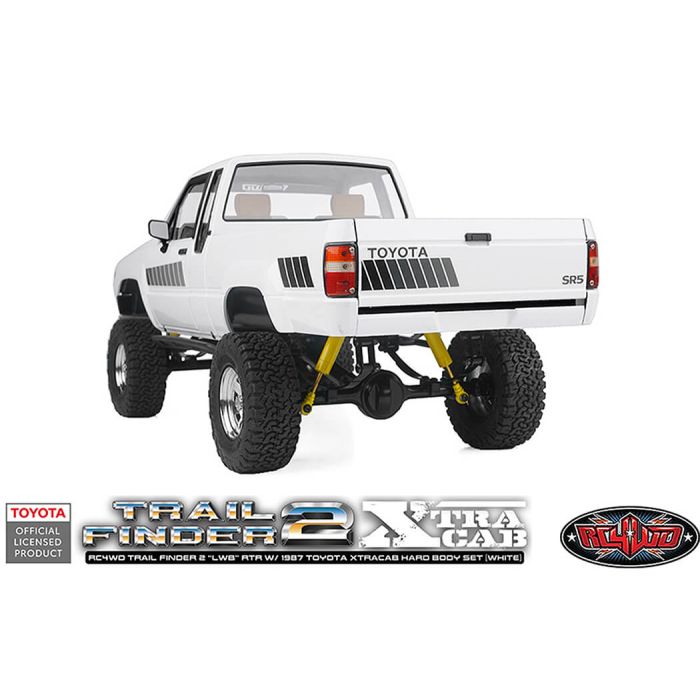

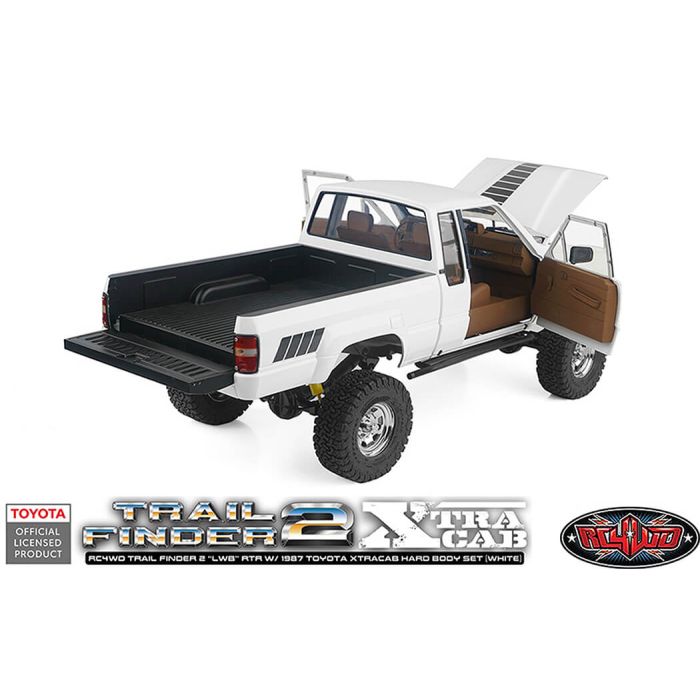

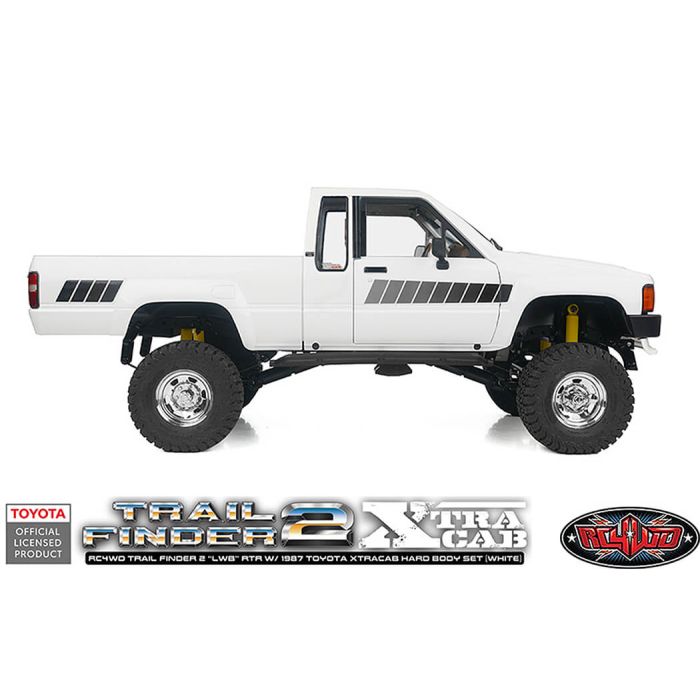

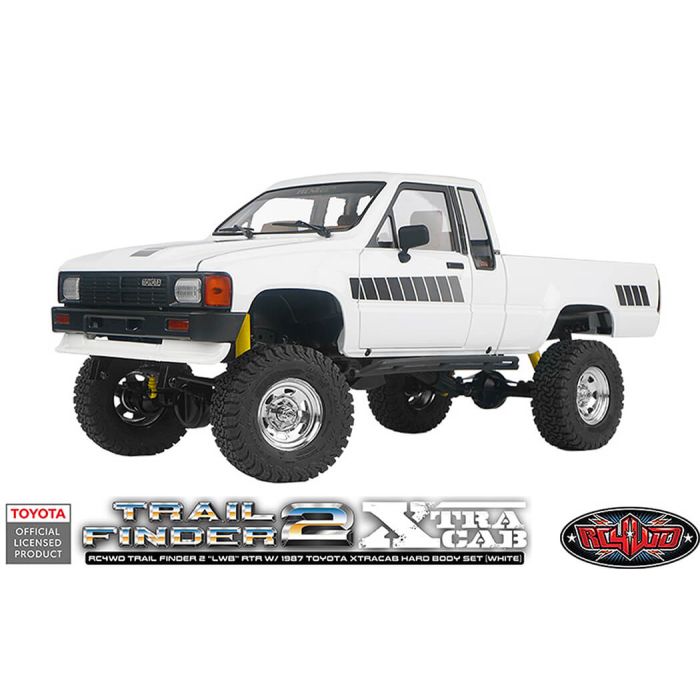

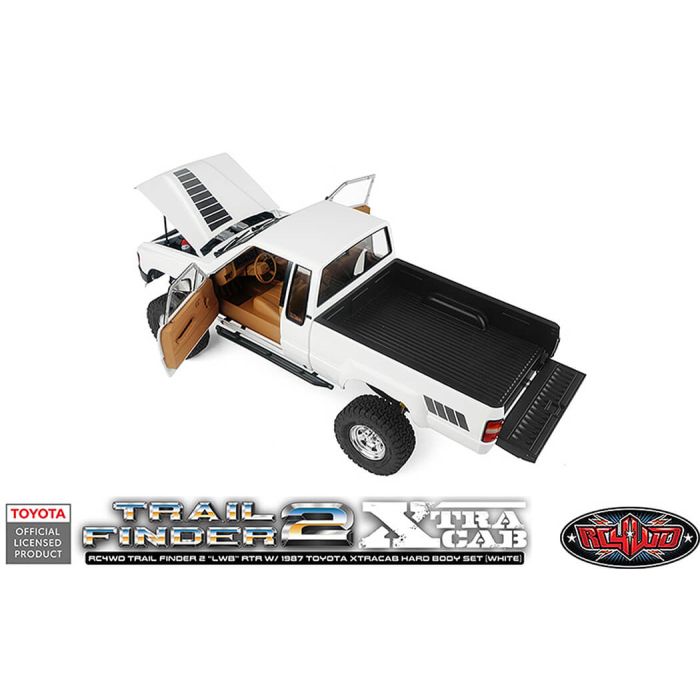

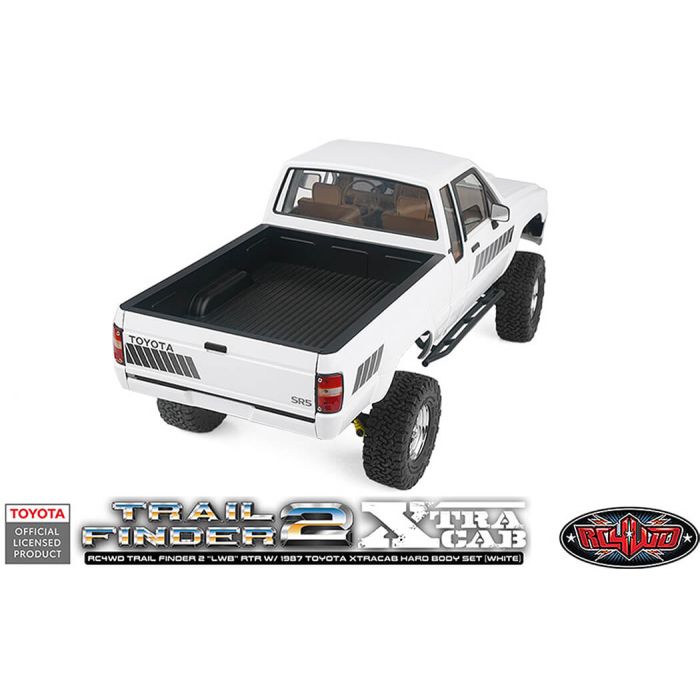

RC4WD Trailfinder 2 Lwb RTR RC Crawler Truck w/1987 Toyota Hilux Hard Body

Bringing the iconic Toyota look of the 80s comes the new RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota Xtracab Hard Body Set (White)! This new RTR truck features a glossy white hard body with an engine bay, painted interior, exclusive decal sheet, and light kit that is sure to captivate scale aficionados! Included hop-ups are ultimate scale shocks, inner fenders, and premium wheels and tires that elevate the scale detail and authenticity!

This Trail Finder 2 "LWB" chassis is equipped with an R3 Single Speed Transmission, 540 Crawler Brushed Motor, and Outcry III Waterproof ESC, ensuring you get the same great performance and durability.

Don't miss this retro exclusive scale experience!


Features

1987 Toyota Xtracab Body Set in White

Realistic Billet Aluminum Ladder Frame Chassis

R3 Single Speed Transmission

Center Mounted Realistic Hammer Transfer Case

540 Crawler Brushed Motor 45t

Outcry III Waterproof ESC

6-Cell 3000Mah Nimh Battery Pack

Yota II Ultimate Scale Cast Axles (XVD)

Twister High Torque Metal Gear Digital Servo

RC4WD Ultimate Scale Shocks (70/90mm) (Yellow)

Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)

RC4WD BFGoodrich All Terrain K02 1.7" Scale Tires

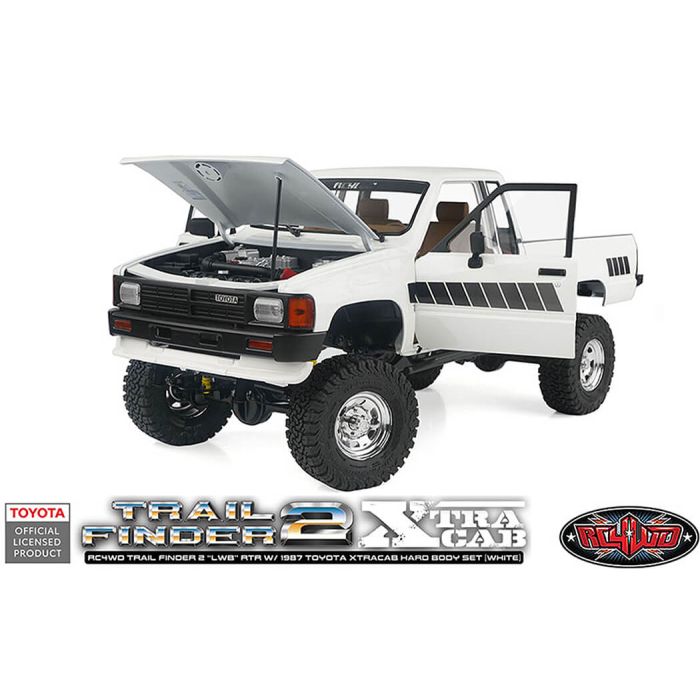

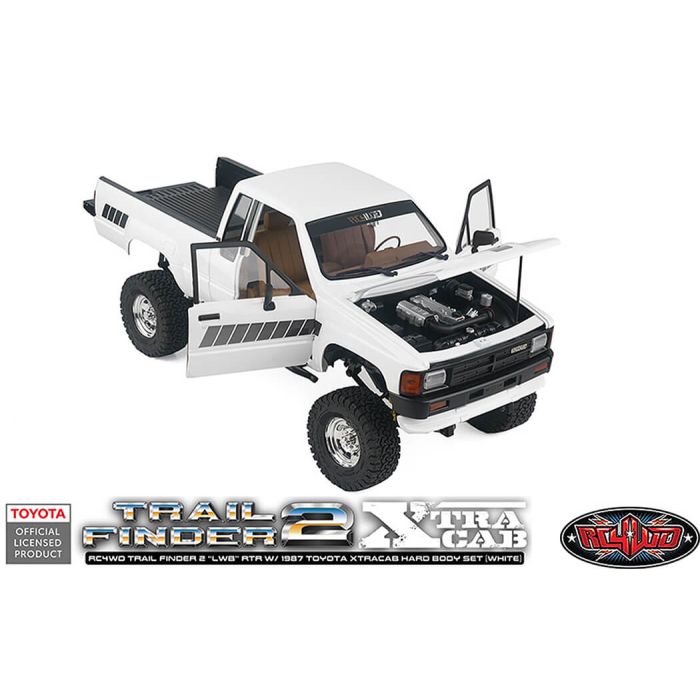

Yota 22RE Engine Bay

RC4WD Marlin Crawler Side Plastic Sliders

RC4WD Inner Fender Set for Toyota 4Runner and Xtracab

NiMH Peak Battery Charger

Xr3 3-Channel 2.4Ghz Transmitter/Receiver Radio

Specifications
Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm

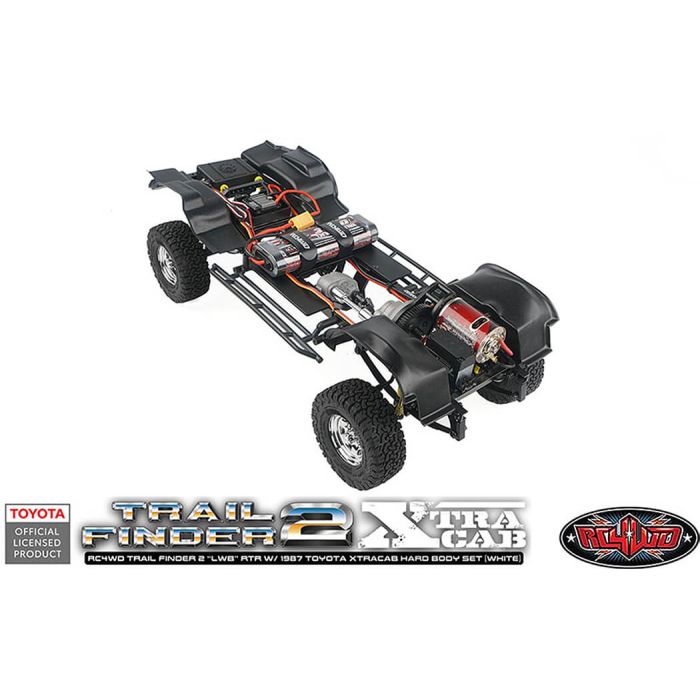

Trail Finder 2 "LWB" Chassis
Billet Aluminum Constriction
Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material
Durable High Steel Yokes

Wheels
Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
Hub: 12mm Hex
Width: 23.0mm (0.90")
OD: 47.0mm (1.85")

TF2 Truck Dimensions
Wheelbase: 314.2mm (12.4")
Width: 206.0mm (8.1")
Height: 225.5mm (8.9")
Ground Clearance: 58.0mm (2.3")
Final Drive Ratio: 31.93:1


What's Included

1 x RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White)

Notes

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

Do not over tighten screws otherwise you may strip the thread.
