Description

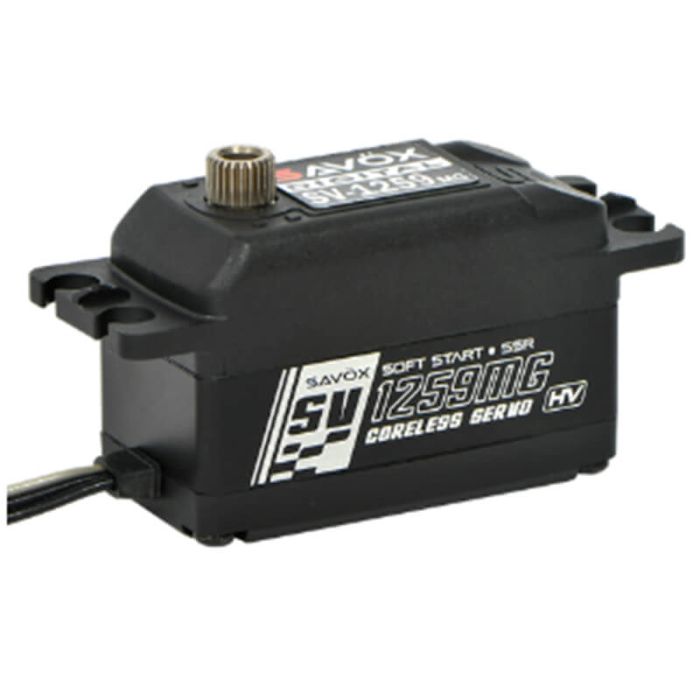

The SV1259MG is a high-voltage, low-profile digital servo engineered for performance in tight spaces. With a robust coreless motor and hardened metal gearing, it delivers crisp, responsive control which is ideal for cars or other applications demanding both torque and speed.
Specifications
- Dimension(mm): 40.8 x 20.2 x 27.4
- Weight(g): 49
- Speed @6.0V (sec/60): 0.10
- Torque @6.0V (kg-cm): 15
- Speed @7.4V (sec/60): 0.085
- Torque @7.4V (kg-cm): 19
- Speed @8.4V (sec/60): 0.075
- Torque @8.4V (kg-cm): 22
- Gears: Metal
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 25 Tooth Spline
More Information
| Part Number | SAV-SV1259MG |
|---|---|
| Manufacturer | Savox |
